Product Description

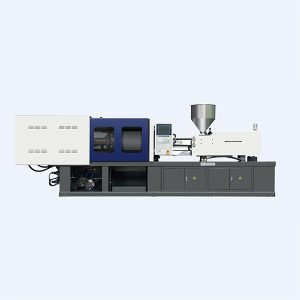

This PET injection molding machine is specialy working with the PET preform mould to make the preforms. Different mould specification choose different machine model.
PET Injection molding machine Feature
- Special designed PET screw & barrel, high increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA valve. Also significantly improves the shrinkage of preform, which achieves better transparency.
- Variety PET injection molding machine specification, suitable for different kind of PET preform moulds.
- Stable performance and highly productivity. Increasing ejecting tonnage and ejector stroke.
- With optional synchronous pressure retaining system, can improve 15%~25% more capacity
- Providing full range of PET bottles technology and equipment, including PET injection molding machine machine, PET blowing machine, PET preform mould and the related equipments.
Technical Parameter
| Model | WB-185PET | ||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 50 | 54 |
| Shot size(theoretical) | Cm³ | 570 | 660 |
| Shot weight | g | 630 | 730 |
| Injection pressure | Mpa | 152 | 130 |
| Injection rate | g/s | 160 | 180 |
| Screw L/D ratio | L/D | 24.5 | 23 |
| Screw speed | r.p.m | 0-140 | |
| Nozzle Diameter | Srmm | 20 | |
| ClAMPING | |||
| Clamping tonnage | KN | 1850 | |
| Toggle stroke | mm | 445 | |
| Mould Thickness | mm | 190-470 | |
| Space between tie-bars | mm | 490×464 | |
| Ejector stroke | mm | 155 | |
| Ejector tonnage | KN | 70 | |
| Ejector number | Piece | 5 | |
| Hole diameter | mm | 125 | |
| OTHERS | |||
| Heat power | KW | 15.5 | |
| Max. Pump pressure | Mpa | 16 | |
| Pump motor power | KW | 18.5 | |
| Machine dimension | m | 5.4×1.6×1.75 | |
| Machine weight | t | 6.2 | |
| Oil tank capacity | L | 270 | |
Working Videos
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: PET Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, Filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
